LocURa4IoT Site 1: offices, open space and meeting rooms

Site description

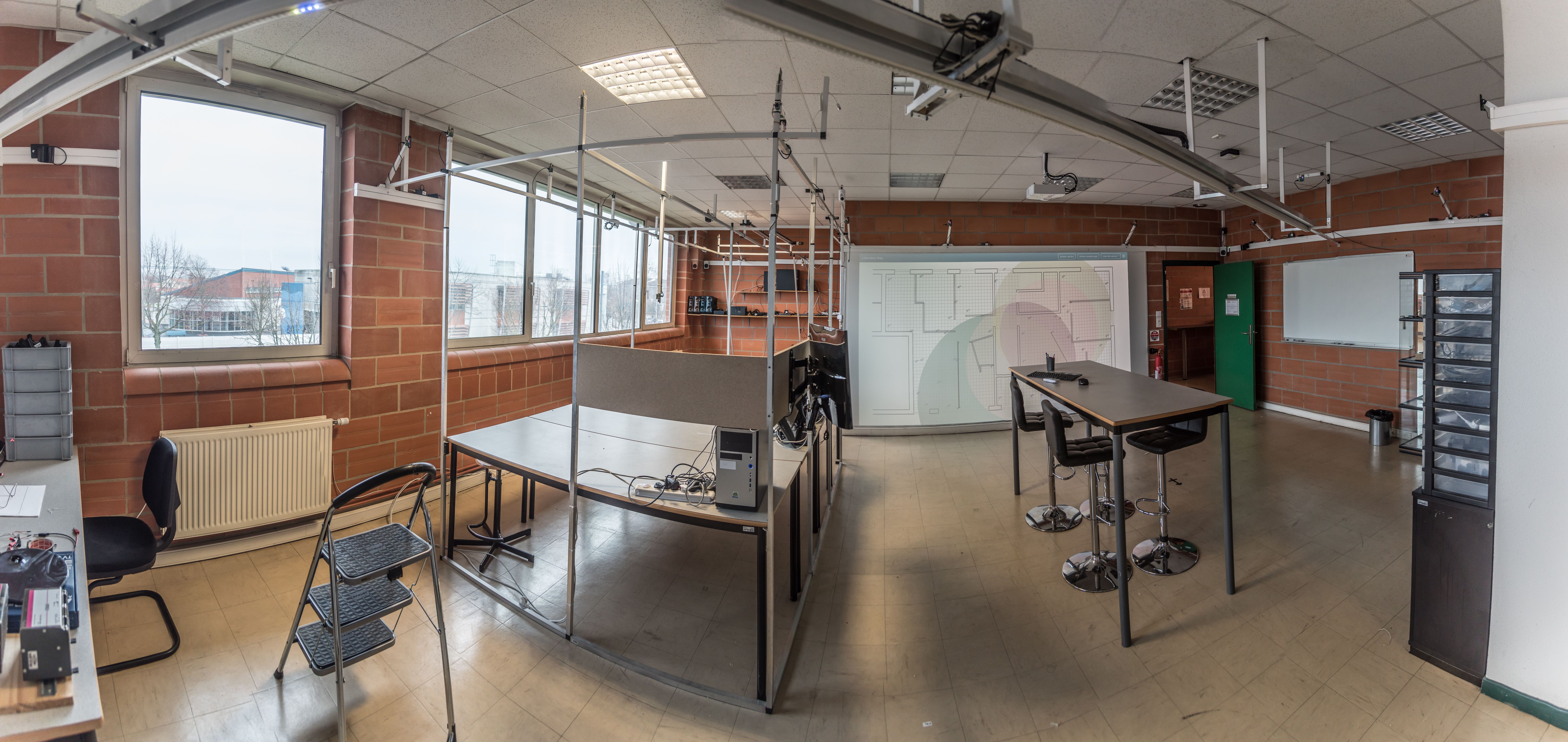

The LocURa4IoT Site1 consists in 50 nodes deployed in the offices, open space and meeting rooms of the laboratory, over a 300 square meter area and on one level.

The walls are either terracotta bricks or drywall.

Most nodes are deployed on a horizontal plane 2.65m above the ground and positioned using a PVC or aluminum structure. Some are placed very close to the ground, at an antenna height of 3cm.

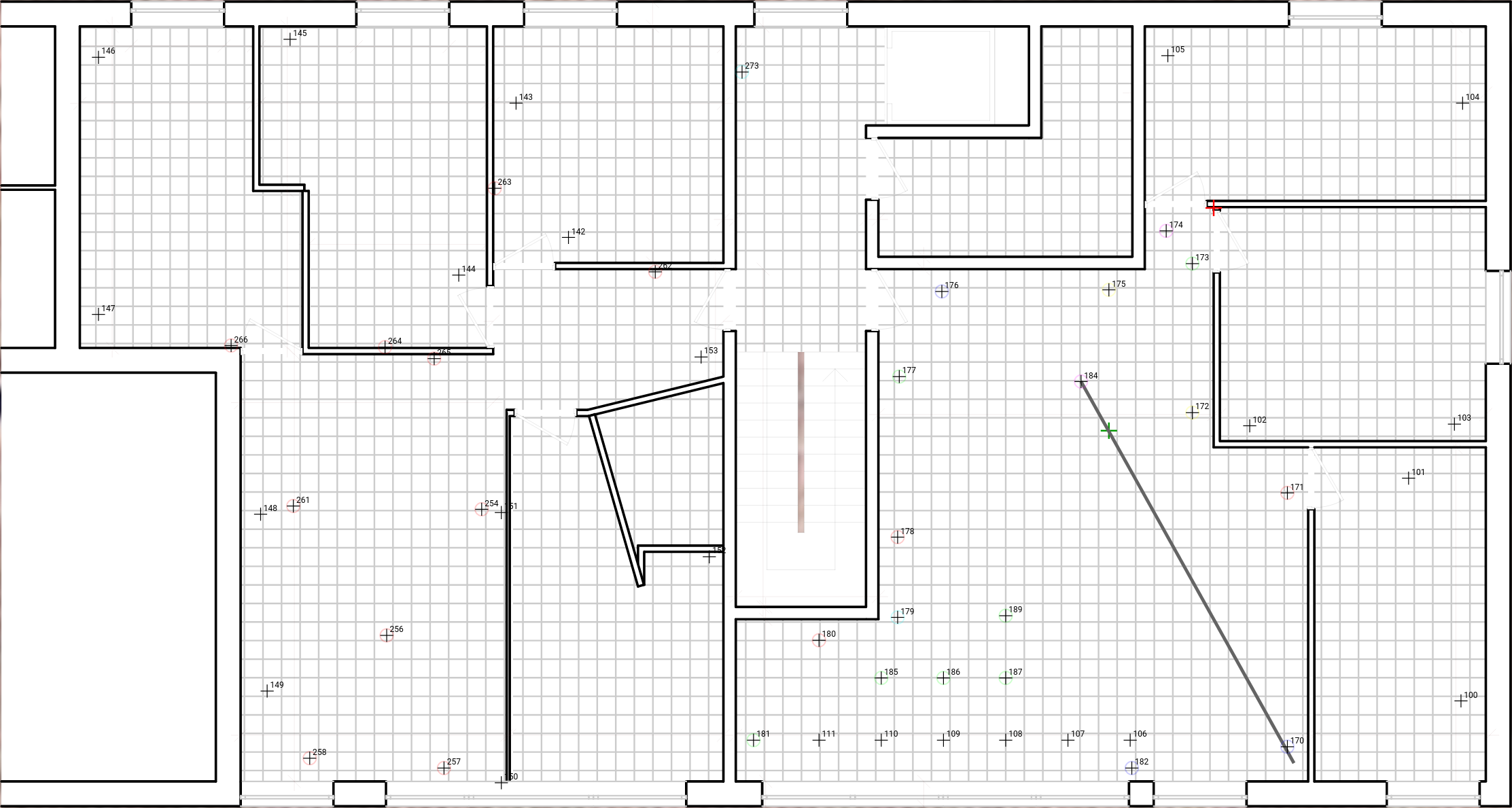

Map of the LocURa4IoT Site 1

Rails and mobility

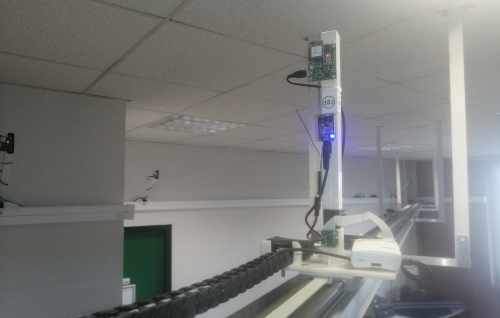

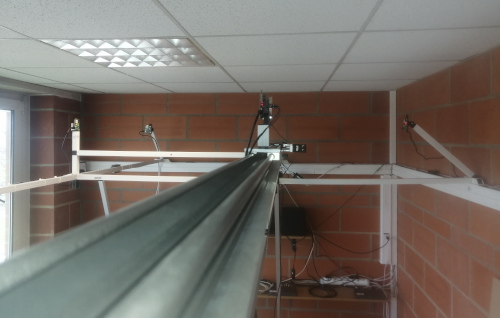

Two rails with respective lengths 7m and 2m make it possible to move two mobile nodes: the linear position (millimeter precision), the speed and the acceleration of the mobiles can be controlled from the experimental scenarios.

7m rail	2m rail

Site strong points

The LocURa4IoT Site1 provides a variety of radio links and has very good radio repeatability properties, especially at night when all doors are shut and no human movement is present. When the researcher is on site, he benefits from several devices for viewing the results in real time (video projector and virtual reality headset).
