Structure of LocURa4IoT
The LocURa4IoT testbed comprises 64 nodes spread over 3 sites (plateaux, in french): P1, P2 and P3.
|
|
|

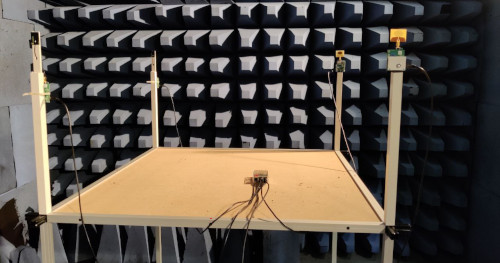

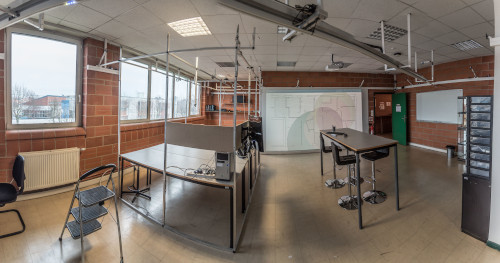

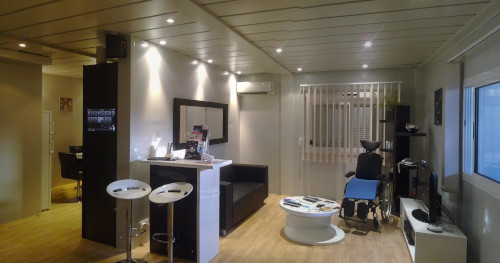

| P1: offices and open-space | P2: appartment | P3: anechoic chamber |
On all sites, node deployments have been conducted using laser rangefinders. Regular verification indicate a precision under 2~cm for the fixed positions. Therefore, the real position of each node, fixed or mobile, can be used in the results to compute a ranging/localization error.
In view of the layout of the walls on the different sites, some radio links are NLOS (Non Line-of-Sight).
| SLICES-FR and LocURa4IoT | |
|---|---|
Since 2022, LocURa4IoT and the UWB ressources of SLICES-FR coexist on the Blagnac campus. The SLICES-FR project is one of the French contributions to European project SLICES-RI. The project aims at removing the barriers between fields in the domain of Computer Networks by allowing large-scale experiments ranging from the embedded networks to server-class machine. By bringing European researchers together, SLICES-RI also bring closer tomorrow’s applications and services. The testbed can be accessed here. |
|
Example of typical usage for each site:
- Site P3 can be used for initial evaluation of a protocol in an isolated environment.
- The implementation is then tested on site P1 with a larger number of nodes in a more challenging environment.
- In some cases, the solution can also evaluated through its usage: this is done on site P2 and involves human-machine interactions.
